High Strength 200 Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave

High Strength 200 Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave
High Strength 200 Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave High Strength 200 Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave High Strength 200 Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave High Strength 200 Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave

Large Image :  High Strength 200 Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS
Model Number: PFM-Lyd
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: Negotiable
Packaging Details: waterproof paper inside,plywood case outside or according to your needs.
Delivery Time: in 3 days for goods in stock
Payment Terms: L/C, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability: 2000 square meter per month
Detailed Product Description
Product Name: Stainless Steel Wire Mesh Keyword: Stainless Steel Wire Mesh
Length: Usually 1.02meter*30meter Per Roll Material: Ss304,316,316L
Weave Type: Plain Weave, Twill Weave,dutch Weave,crimped Feature: High Strength
High Light:

crimped wire mesh

,

stainless steel mesh cloth

200Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave





Features of stainless steel wire mesh



  • Washability:Easy to clean,especially suitable for backwashing
  • Tractability: suitable for cutting, bending, stamping, drawing, welding and other processes.
  • Stability: Because there are two layers to protect the screen which make filters is not easily to deform.
  • Filtering capabilities:Filtration range of 1μ-200μ, has a reliable filter performance
  • Resist high temperature:480 °C can withstand high temperatures.
  • Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.
  • High mechanical strength and compressive strength



Decription of stainless steel wire mesh:



Material: SS 201,202,304, 304L, 316, 316L, 430, 304N,Etc.

Mesh:1-1500mesh

Diameter:0.02-3.0mm

Weave types: Plain weave, twill weave, Dutch weave, Five Heddle weave,crimped mesh



Specifications of stainless steel wire mesh:



Stainless Steel Wire Mesh Specification
Mesh/Inch Wire Diameter Aperture Open Area Weight(kg/Square meter)
Inch MM Inch MM
1×1 0.080 2.03 0.920 23.37 92.0 2.0
2×2 0.063 1.6 0.437 11.1 87.4 2.5
3×3 0.054 1.37 0.279 7.09 83.8 2.7
4×4 0.047 1.2 0.203 5.16 81.2 2.7
5×5 0.041 1.04 0.159 4.04 79.5 2.6
10×10 0.024 0.6 0.076 1.94 74.9 1.8
12×12 0.020 0.5 0.064 1.62 75.9 1.5
14×14 0.020 0.5 0.052 1.314 71.9 1.75
16×16 0.018 0.45 0.045 1.137 71.2 1.6
18×18 0.016 0.4 0.0398 1.01 69.4 1.4
20×20 0.009 0.24 0.041 1.03 76.0 0.57
20×20 0.012 0.3 0.0382 0.97 72.2 0.9
30×30 0.012 0.3 0.0215 0.547 63.9 1.35
30×30 0.0094 0.24 0.0243 0.62 72.1 0.84
40×40 0.0098 0.25 0.015 0.385 36.74 1.25
50×50 0.0079 0.2 0.0121 0.308 36.7 1.0
60×60 0.0047 0.12 0.012 0.303 71.6 0.42
60×60 0.0059 0.15 0.0107 0.273 64.5 0.65
80×80 0.0047 0.12 0.0078 0.198 38.7 0.58
80×80 0.0055 0.14 0.0069 0.177 45.5 0.76
100×100 0.0039 0.1 0.006 0.154 59.8 0.50
100×100 0.0043 0.11 0.0056 0.144 55.1 0.60
120×120 0.0027 0.07 0.0056 0.142 67.7 0.29
120×120 0.0031 0.08 0.0052 0.132 38.7 0.38
150×150 0.0024 0.06 0.0043 0.109 41.6 0.27
165×165 0.0018 0.45 0.0043 0.109 50 0.167
180×180 0.0019 0.05 0.0036 0.091 64.5 0.22
180×180 0.0023 0.06 0.0032 0.081 57.4 0.32
200×200 0.0019 0.05 0.003 0.077 60.6 0.24
200×200 0.0024 0.06 0.0026 0.067 52.7 0.35
250×250 0.0012 0.03 0.0028 0.072 49.8 0.11
250×250 0.0016 0.04 0.0024 0.062 36.9 0.20
270×270 0.0014 0.035 0.0023 0.059 60 0.16
270×270 0.0016 0.04 0.0021 0.054 57.4 0.21
300×300 0.0012 0.03 0.0022 0.055 57 0.13
325×325 0.0014 0.035 0.0017 0.0432 55.3 0.20
400×400 0.0012 0.03 0.0013 0.0335 52.7 0.18
500×500 0.0009 0.025 0.001 0.0258 50.7 0.15
635×635 0.0007 0.018 0.0008 0.022 55 0.10



Applications of stainless steel wire mesh:



with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

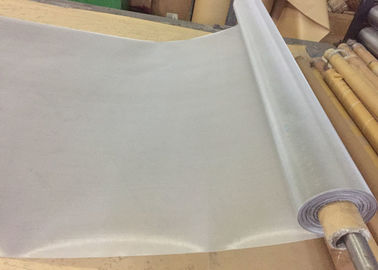

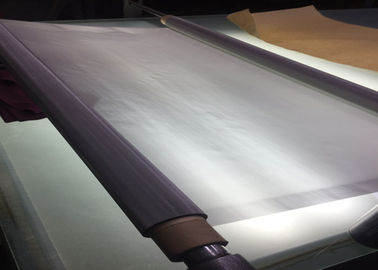

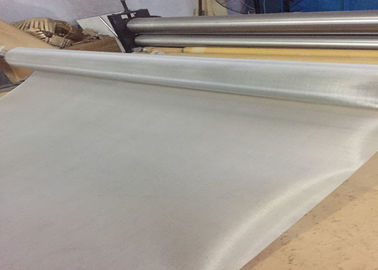

High Strength 200 Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave 0



Packing of stainless steel wire mesh:

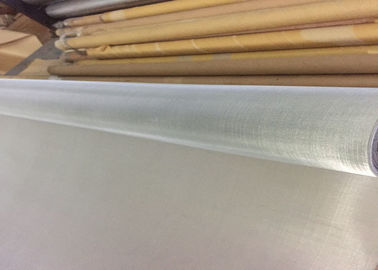

High Strength 200 Mesh Stainless Steel Wire Mesh For Filtering With Plain Weave 1
