| Name: | 6mm X6mm Opening Size Polyester Mesh Belt For Food Industries | Material: | 100% Polyester Monofialment Yarn |
|---|---|---|---|
| Hot Search: | Polyester Mesh Belt 6X6 Mm | Wire Diameter: | 0.7mm,0.8mm,1.0mm |
| Weave Type: | Plain Weave | Color: | White And Yellow |
| High Light: | mesh material fabric,woven mesh fabric |
||
6mm X6mm opening size Polyester Mesh Belt for food industries
Features of 6mm X6mm opening size Polyester Mesh Belt for food industries:
Specifications of Polyester Dryer Belt mesh
| Polyester Dryer Belt mesh | |||||||
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Srength | Air Permeability | ||
| (mm) | (N/cm) | (m3/m2h) | |||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving fabric | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
| 20403 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 |
|
Discription of 6mm X6mm opening size Polyester Mesh Belt for food industries:
1. the opening size 6mm*6mm
2. the width of polyester dryer screen belt mesh is usually 1 meter - 13 meter,the length is available as per requirement

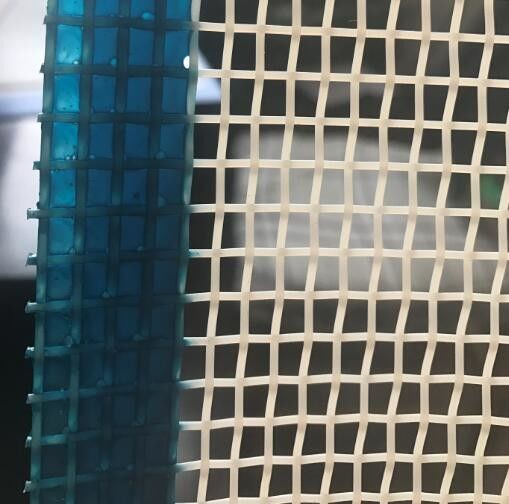

3. edge treatment:the edge of polyester mesh dryer belt can be sealed with glue and cavans
To make sure extra belt durability,polyester Dryer Screen mesh edge treated with glue and cavans.
4. the joining type of 05802 polyester mesh Dryer belt can be endless,steel pin joining,spiral ring joining and pin ring joining.
Endless Seam make sure the seaming points has the same airpermeabilty and strength with the whole belt
Steel pin,pin ring and spiral ring seam are designed for easy and rapid installation.
Application of 08552 polyester mesh belt:
Polyester Screen Dryer mesh Belt is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.
Polyester Screen Dryer Mesh is also used for tailings disposal,colliery,food and medicine.
Texo weaving machine imported from sweden.
Heat shaping processing is very important to the quality of polyester plain weave mesh screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.
Advanced programming software completes the controlling,
Packing and shipping:
Polyester Plain Weave Belt can be shiped by courier,by air and by sea.
Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.
