Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration

Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration
Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration

Large Image :  Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration

Product Details:

Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lis

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inside And Plywood Case Outside Or According To The Customer's Needs.
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, , MoneyGram,Paypal
Supply Ability: 2000 Square Meters Per Quarter
Detailed Product Description
Marterail: Monofilament Polyester Color: Red
Name: Polyester Mesh Belt Weave Type: Small Loop,medium Loop,large Loop
Application: Filteration Feature: Alkali Resistance
High Light:

stretch mesh fabric

,

mesh material fabric

                        Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration





 Description



  Polyester spiral wire mesh belt is used in paper mills paper drying,drying of textile printing and dyeing products,applies to the following speed 600m/s for horizontal belt vacuum washer.it is also used in filtration and sieving industries

 The belt has features of breathable,easy to repair,smooth surface,



Application of polyester dryer screen



Spiral dryer fabric,avariety of free shrinking,breaking,elongation,tolerance is available.Widely used in producing of paper,also in filtration and sieving in various fields.

1.Dewatering of inert sludge from quarries or mines

2.Dewatering biological or chemical sludge from municipality sewage plants

3.Pressing of grapes,fruit and others

4.Conveyor/processing belt in take off and drying ovens

5.Print work



Specification:



Polyester Spiral Dryer Conveyor Wire Mesh Belt
Weaving Type Model Thread Diameter Air permeability
(mm) (m3/m2h)
Warp Weft
Large Loop 4070 0.9 1.1 20000±500
Medium Loop 3868 0.7 0.9 18500±500
Small Loop 3252 0.52 0.7 15000±500



Features:

  • Acid and alkali resistance,high temperature resistance,long work time,non-toxic,is woven carpet canvas and general network several time,
  • With smooth surface,the tensile strength,good permeability,high heat transfer efficiency,for the user to save energy.

Polyester spiral press filter mesh belt



With filled wire to join the spiral ring,the air permeability is reduced,then reduce the material loss on the fabric surface.This kind of belt is mainly used for the belt dewatering press filter industries,such as food,pharmaceutical,chemical,alcohol,vinegar,coal washing,mining,paper pulp washing and drying,

Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration 0


Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration 1 Polyester spiral press filter mesh belt

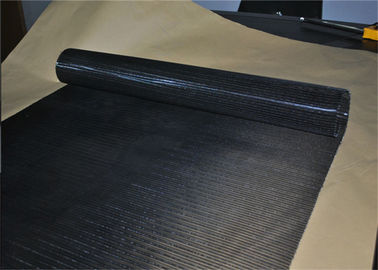

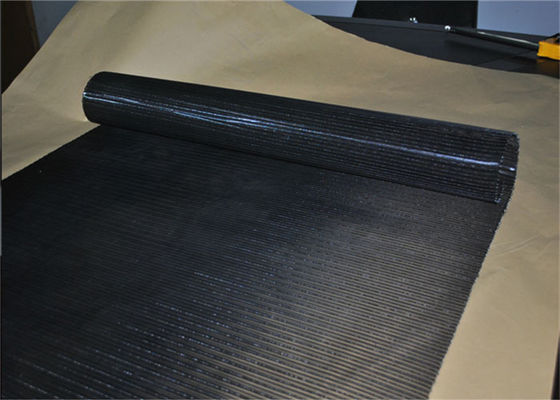

Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration 2 Polyester spiral mesh belt

Polyester Spiral Wire Mesh Belt Dryer Screen Widely Used In Filteration 3
