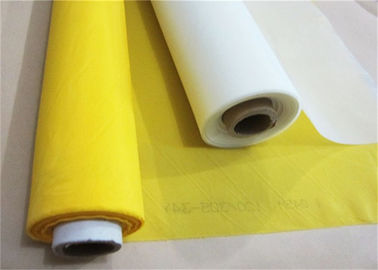

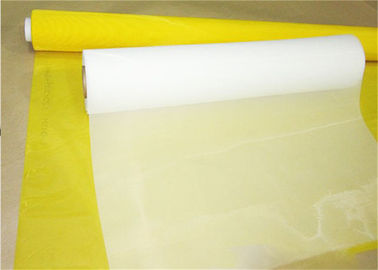

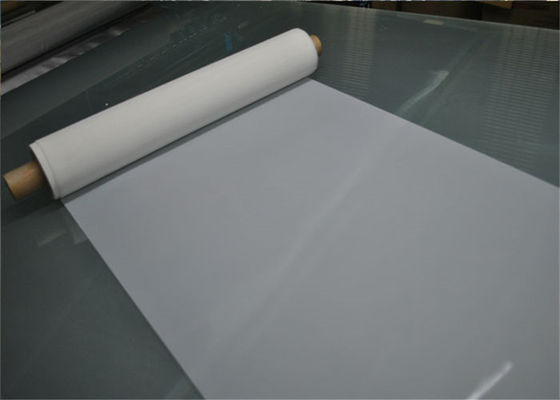

High Precision Polyester Printing Mesh For Electronic Product 30m / roll

China High Precision Polyester Printing Mesh For Electronic Product 30m / roll supplier
High Precision Polyester Printing Mesh For Electronic Product 30m / roll supplier High Precision Polyester Printing Mesh For Electronic Product 30m / roll supplier High Precision Polyester Printing Mesh For Electronic Product 30m / roll supplier

Large Image :  High Precision Polyester Printing Mesh For Electronic Product 30m / roll

Product Details:

Place of Origin: Hebei China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lis

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: Negotiable
Packaging Details: Plastic bag inside on one roll and carton case outside,or cut into small pieces and plastic bag.
Delivery Time: 3-10days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 3000meters per week
Contact Now
Detailed Product Description
Material: Polyester Mesh: 13-500mesh/inch
Color: White Aperture: 20-1550micron
Length: 30m/roll Thread Diameter: 30-450micron

High Precision Polyester Printing Mesh / Electronic Product Printing Mesh



1. Description



According to the use of silk screen called silk screen printing network, polyester filter

  • Specifications:8T-165T (20mesh/inch-420mesh/inch)
  • Color:white,yellow,black,orange,etc white and yellow is mainly used to printing,Black used in the sound more.Other colors on request
  • Weave:Plain weave
  • Width:50-360cm,Conventional size has 1m,1.27m,1.65m,
  • If the quantity is big,the special size can be customized,.



2. Application



Silk screen performance is good, high strength, eye hole accurate. Structural strength, good resistance to printing, high mesh accuracy, high dimensional accuracy, good dimensional stability, good resistance to drug performance, good ink performance; pull the net after the stability of the stability, printing accuracy and stability of the structure, can withstand Higher tension, low elongation; long life, in a very small net distance, and ink stripping performance is good; for a variety of large signs, billboards. Printing, printing and dyeing, ceramics, electronic components, glass, industrial filtration, food chemical paper, plastic, silk chemical fiber and other industries



3. Specification



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 47 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22





4. Feature advantage


1, screen printing adaptability is very strong, wide range of applications.
2, screen printing can not only monochrome printing, you can also color and color printing network.
3, screen printing products, light resistance than other types of printed products, light fastness, more suitable for outdoor advertising, signs of use.
4, screen printing can be a large area of printing, today's screen printing products, the most significant up to 3 m × 4 m, or even greater
