Stainless Steel Wire Mesh Conveyor Belt With Ladder Type For Egg Conveyer

Stainless Steel  Wire Mesh Conveyor Belt With Ladder Type For Egg Conveyer
Stainless Steel  Wire Mesh Conveyor Belt With Ladder Type For Egg Conveyer Stainless Steel  Wire Mesh Conveyor Belt With Ladder Type For Egg Conveyer Stainless Steel  Wire Mesh Conveyor Belt With Ladder Type For Egg Conveyer

Large Image :  Stainless Steel Wire Mesh Conveyor Belt With Ladder Type For Egg Conveyer

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS
Model Number: PFM-LIS
Payment & Shipping Terms:
Minimum Order Quantity: 1meter
Price: Negotiable
Packaging Details: Plastic bag inside and plywood case outside or according to your need.
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal,Trade assurance
Supply Ability: 300 meter per month
Detailed Product Description
Material: SS304 Application: Egg Conveyor
Advantage: Large Open Area Type: Ladder Wire Mesh Conveyor Belt
Feature: Light Thread Diameter: Min 1mm
High Light:

conveyor chain belt

,

stainless steel mesh conveyor belt

             Stainless Steel Wire Mesh Conveyor Belt With Ladder Type Uesd For Egg Conveyer

Type of wire mesh belt:Ladder conveyor belt

Material of wire mesh belt:

stainless steel 304 316 316L 430 310 ,carbon steel galvernized steel and so on.

Description

Usually ladder conveyor or is also called chocolate conveyor belts, which is made by assembling bent stainless steel wires.This innovative design lasts significantly than other flex-style belts.

  1. hinges rather than flexing
  2. lasts 10X longer than traditional flex-style belts
  3. eliminates edge curling,snags and tangling.

Advantage of wire mesh conveyor belt:

  • The sprocket drive ensures positive and stable running
  • The rotation diameter is small,so that smooth products transfer is ensured
  • Easy washing is ensured
  • Because of large open area,high air permeability and dehydration capacity are ensured.


Applications of wire mesh conveyor belt:

  • .tight wire mesh for flexibility and conveying small parts.
  • special smooth surface belts for easy accurate transfer
  • wire belts with large opening for easy flow of air or water and for simplified cleaning of your product
  • convey metal parts through copper and aluminum brazing furnaces.

Before sending inquiry ,the following wire mesh belt information need to be told:



material such as stainless steel 304,316,316L,310,430 and so on
datas spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length
requriement such as working temperature,laoding weight
size of the belt wide and length can be designed according to customer`s requriement.




Pitch (mm) 5 6 7 7 10 13 15 18 20 20 15 20 19
Wire diameter (mm) 1 1 1 1 2 2 2 3 3 3.2 2 3.5 5
Minimum span (mm) 30 30 30 30 30 40 40 60 100 130 50 150 3000
Overall width (mm)                                                300-4200

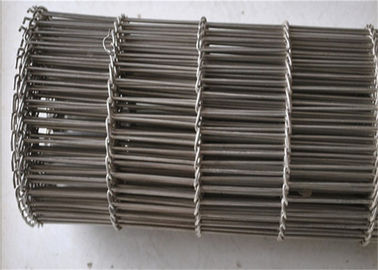

Stainless Steel  Wire Mesh Conveyor Belt With Ladder Type For Egg Conveyer 0

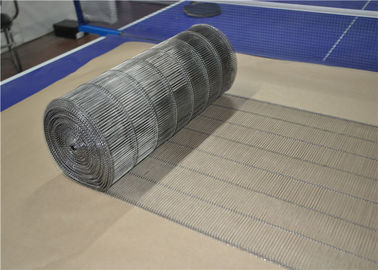

Stainless Steel  Wire Mesh Conveyor Belt With Ladder Type For Egg Conveyer 1
