|Product Name:||Heavy Duty Stainless Steel Filter Wire Mesh Woven Screen Fabric||Application:||Filtering Material|
|Size:||Usually 1.02meter*30meter Per Roll||Hot Search:||Steel Woven Fabric|
|Hot Search 1:||Filter Mesh Screens||Hot Search 2:||Stainless Wire Screen|
stainless steel mesh screen,
crimped wire mesh
Heavy Duty Stainless Steel Filter Wire Mesh Woven Screen Fabric
PFM screen Co.,Ltd is focus on production of stainless steel crimped wire mesh, stainless steel wire screen,stainless steel woven wire mesh.
Decription of stainless steel Woven Wire Mesh Fabric:
|material||SUS304 316 316L,304L,201|
|weave type||plain weave,twill weave,dutch weave,reverse dutch weave|
|size per roll||usually 1meter or 1.2meter wide,30meter per roll|
|wire diameter||Min diameter is 0.023mm|
|aperture size||MIN is 2 micron|
Features of stainless steel mesh fabric :
1. corrosion resistant,stainless steel grade is acid and alkali resistant.
2. high temperature resistant,can bear 800 degree centigrade
3. uniform wire diameter,error is +-2micron
4. stable structure
|stainless steel woven wire mesh cloth is wire mesh which is super fine, so it is also called stainless steel wire cloth,wire mesh fabric,this kind of mesh is usually used for micron filtering industry,such as air filtering,liquid filter and small solid filtering.|

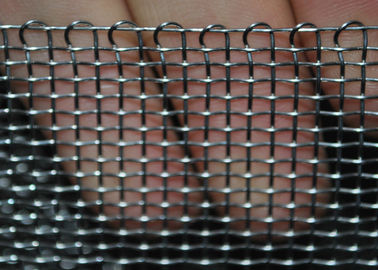

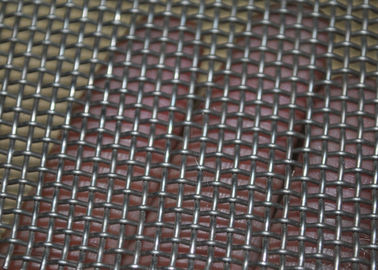

|crimped woven wire mesh fabric refer to coarse wire mesh,mild wire mesh.the wire diameter of crimped mesh is bigger than that of stainless steel fine woven mesh,so crimped wire mesh if of high strength,can used as protection fence,coal mine sieveing screen and wire mesh for hoggery.|
Dutch weave wire mesh screen is another kind of stainless steel woven wire mesh,this mesh count of warp and weft is different,the thickness is bigger than than of stainless steel fine mesh,Dutch weave wire mesh is widely used as micron filtering material of environmental protection equipment.
Reverse dutch weave wire cloth is a kind of dutch weave wire mesh,the mesh count per inch of warp wire is more than that of weft wire,then to form much more thickner of mesh surface.reverse dutch weave wire mesh is widely used as plastic extruder machine.
Specifications of Stainless Steel Woven Crimped Wire Mesh Screen Fabrics
1. Consistent pore size distribution guarantees a significantly higher particle separation
2. material:SUS304 316 316L,316L is mainly designed for marine aquaculture and pharmacy.
3. mesh count per liner inch:2-635mesh
4. wire thread can be from 0.08” to 0.0008”
5.width:usually 40” and 48”,special can be ordered
Stainless Steel Woven Crimped Wire Mesh Screen Fabrics is widely used in Chemical filtering,Food and beverage for food filtering,Mining,main use coarse mesh,such as crimped wire mesh,Refining,mail use stainless steel fine mesh,Healthcare,Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh,Acoustic,headphone net,Automotive, Security,PVC coated stainless steel mesh,Pharmaceutical,Quarry,Electrical Cigarette.
